How to Install IBM Maximo Visual Inspection Edge with RHEL OS on Server x86 ?

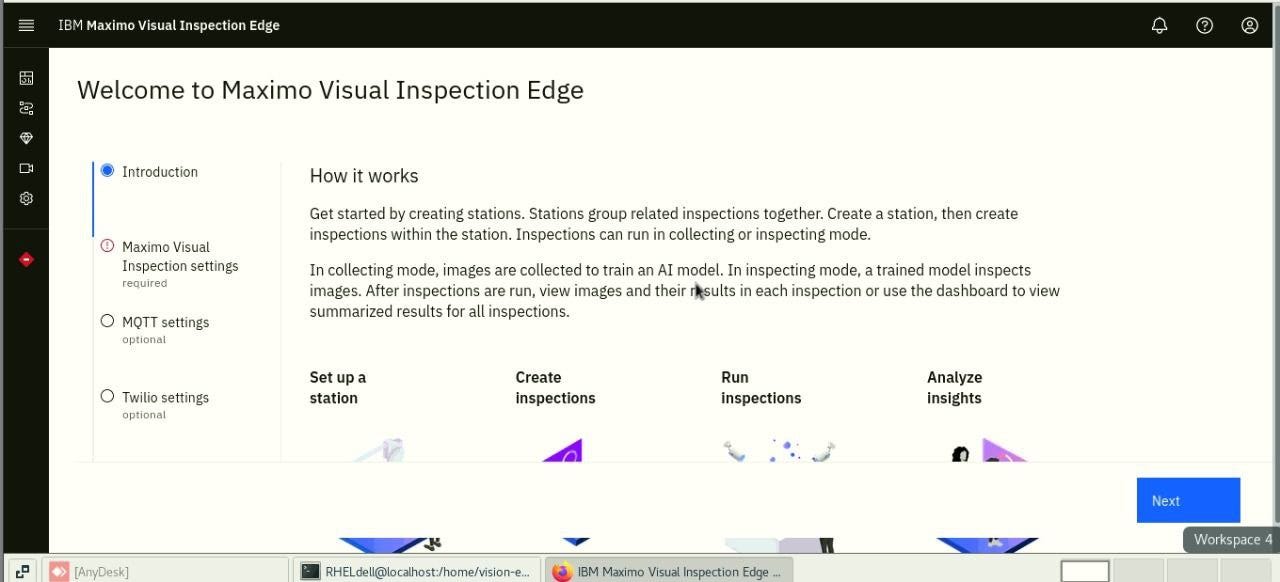

Ilustration-1:IBM Maximo Visual Inspection Edge 1.3 Welcome Page
  1. Enable common, optional, and extra repo channels.
sudo subscription-manager repos --enable=rhel-7-server-optional-rpmssudo subscription-manager repos --enable=rhel-7-server-extras-rpmssudo subscription-manager repos --enable=rhel-7-server-rpms
sudo yum -y install wget nano bzip2
wget rpm -ihv epel-release-latest-7.noarch.rpm
  • Load the latest kernel:
sudo yum install kernel-develsudo yum update kernel kernel-devel kernel-tools kernel-tools-libsreboot
  • Do a full update:
sudo yum install kernel-devel sudo yum update sudo reboot
  • Copy the /lib/udev/rules.d/40-redhat.rules file to the directory for user overridden rules:
sudo cp /lib/udev/rules.d/40-redhat.rules /etc/udev/rules.d/
  • Edit the /etc/udev/rules.d/40-redhat.rules file:
sudo nano /etc/udev/rules.d/40-redhat.rules
  • Comment out the entire “Memory hotadd request” section and save the change:
# Memory hotadd request #SUBSYSTEM!="memory", ACTION!="add", GOTO="memory_hotplug_end" #PROGRAM="/bin/uname -p", RESULT=="s390*", GOTO="memory_hotplug_end"  #ENV{.state}="online" #PROGRAM="/bin/systemd-detect-virt", RESULT=="none", ENV{.state}="online_movable" #ATTR{state}=="offline", ATTR{state}="$env{.state}"  #LABEL="memory_hotplug_end"
  • Optionally, delete the first line of the file, since the file was copied to a directory where it cannot be overwritten:
# do not edit this file, it will be overwritten on update
  • Restart the system for the changes to take effect:
sudo reboot
sudo yum-config-manager --add-repo yum clean allsudo yum -y install nvidia-driver-latest-dkms cudasudo yum -y install cuda-drivers
sudo systemctl enable nvidia-persistenced
sudo reboot
Ilustration-2: nvidia-smi test (NVIDIA Cuda 11.4)
  • Install Docker:
sudo yum install docker
  • Reboot the system.
  • Ensure the Docker service is running with the following command:
sudo systemctl --now enable docker
  • And finally, test your Docker installation. We can query the version info:
sudo docker -v
  • Add the package repositories and install Nvidia-Docker2
distribution=$(. /etc/os-release;echo $ID$VERSION_ID)
curl -s -L$distribution/nvidia-docker.repo | sudo tee /etc/yum.repos.d/nvidia-docker.repo
sudo yum install -y nvidia-container-toolkit sudo systemctl restart docker
  • At this point, a working setup can be tested by running a base CUDA container:
sudo docker run --rm -e NVIDIA_VISIBLE_DEVICES=all nvidia/cuda:11.0-base nvidia-smi
Ilustration-3: Nvidia-Docker2 Test

Before you begin

Installing Maximo Visual Inspection Edge

  1. On your file system, identify where you want to install Maximo Visual Inspection Edge, for example /apps.
  2. In the identified location, create a directory. The final directory in the installation path is the installation root directory and must be called vision-edge, for example, /apps/vision-edge. The following instructions use <installation root directory> for this directory.
  3. Log in to the repository where you want to download images from, which can be a custom repository or the IBM® Cloud repository. For example, to log into the IBM® Cloud repository, run the sudo docker login command and provide your username and API key. In the following instructions, <docker image repository> refers to the location of the repository that you download Docker® images from.
  4. Create the required directories and files by running the following command:
sudo docker run --rm -v <installation root directory>:/opt/ibm/vision-edge -e hostname=$(hostname -f) --privileged -u root <docker image repository>/vision-edge-inception:<release version>
sudo docker run --rm -v /apps/vision-edge:/opt/ibm/vision-edge -e hostname=$(hostname -f) --privileged -u root
sudo <installation root directory>/
Ilustration-4: Finish to install
